Small Plant Growth Chamber
Small Plant Growth Chamber

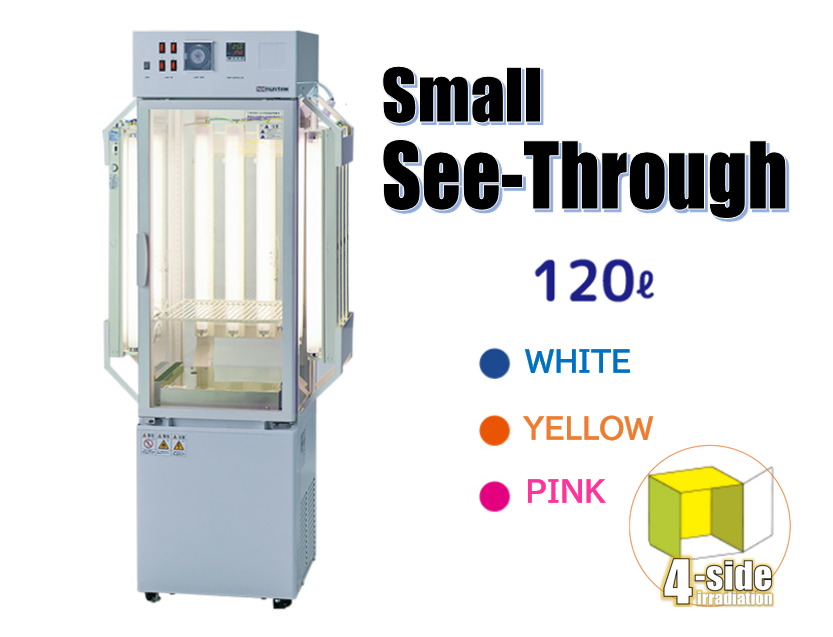

The Small Plant Growth Chamber (120L) is a compact, energy-efficient solution designed for plant research, tissue culture, germination, and environmental testing. It features a choice of SUNRAY LIGHT (white LED) or PLANTFLEC (yellow/pink plant growth LED) to simulate optimal growing conditions. With precise temperature control, programmable operation modes, and five-side illumination, it provides a stable environment for a wide range of agricultural and life science applications.
Key Features
- Compact 120L plant growth chamber

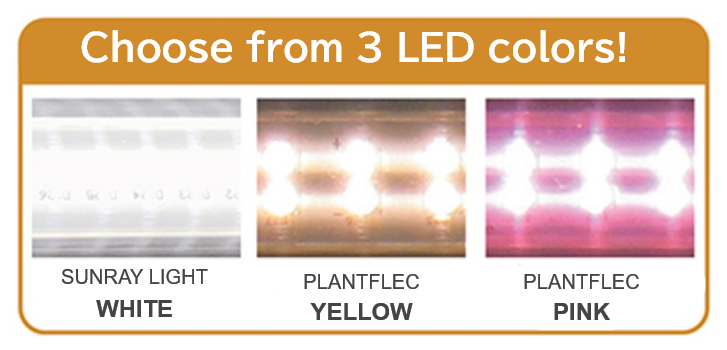

- Choice of SUNRAY LIGHT (white LED) or PLANTFLEC (plant growth LED)
- Constant, day/night switching, or programmable operation
- 9-step / 3-pattern or 27-step / 1-pattern program control (Type-SP)
- Five-side LED illumination for uniform plant growth

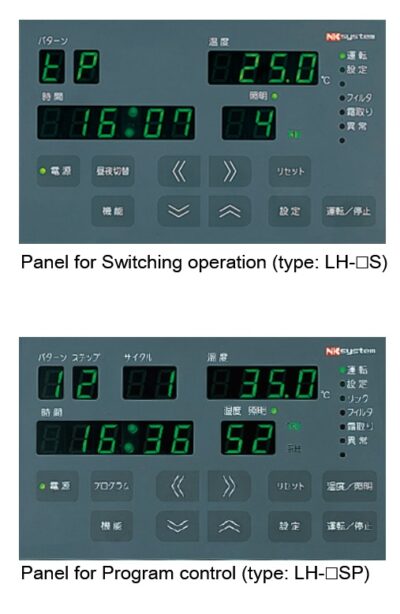

- Touchscreen control panel with real-time display
- Energy-efficient 3-position temperature control
- Built-in forced evaporation system (Type LH) eliminates the need for drainage
- Low operating costs and reliable environmental control
Applications
- Plant cell and tissue culture
- Seed germination and plant acclimation
- Plant growth and development studies
- Environmental tolerance testing for plants
- Thermostatic storage experiments
- Environmental simulation and research
Optional Accessories
- Measuring holes for external sensors and monitoring equipment
Technical Specifications
| Specification | LH-120PFS-S / LH-120PFD-S / LH-120PFP-S | LH-120PFS-SP / LH-120PFD-SP / LH-120PFP-SP |
|---|---|---|
| LED Type | White LED / Yellow LED / Pink LED | White LED / Yellow LED / Pink LED |
| Outer Dimensions (W × D × H) | 586 × 674 × 1,571 mm | |
| Inner Dimensions (W × D × H) | 380 × 418 × 773 mm | |
| Control System | Constant operation and Day/Night switching operation | Step Program (9 steps / 3 patterns or 27 steps / 1 pattern) |
| Repeat | — | 1 to 99 repetitions or Infinite |
| Control Method |
Three-position control method: Refrigerator: ON/OFF control Heater: Proportional control |
|
| Temperature Range | +5°C to +50°C (±1°C) | |
| Illuminance |
White: 0 – 18,000 lx Yellow: 0 – 18,500 lx Pink: 0 – 11,000 lx |
|
| Photon Flux Density |
White: 0 – 300 μmol/m²/s Yellow: 0 – 250 μmol/m²/s Pink: 0 – 220 μmol/m²/s |
|
| Light Source |
White: Straight tube Sun-like LED (SUNRAY LIGHT) Yellow & Pink: Straight tube Plant Growth LED (PLANTFLEC) |
|
| Number of Lamps |
Left, Right & Rear: 4 Lamps (20W × 4 sides) Ceiling: 1 Lamp (10W × 1 side) |
|
| Refrigerator | 150 W | |
| Heater | 300 W | |
| Shelves | 4 Adjustable Shelves | |
| Maximum Operating Current | 6.5 A | |
| Power Requirement | Single Phase 100V, 50/60Hz, 15A | |
| Weight | 145 kg | |
Notes:
- Temperature sensor: Platinum resistance temperature sensor.
- Power requirement does not include the internal power outlet. The built-in outlet supports equipment up to 1A.
- The chamber is designed to operate in an ambient temperature of 15°C to 30°C. Performance may vary depending on operating conditions.
- Depending on the sample type, a drainage installation may be required.
- Maintain at least 30 cm clearance on both sides and the rear of the chamber to ensure proper heat dissipation and cooling performance.
- The specified temperature and humidity control accuracy applies when the chamber lights are turned off.
- Performance may vary depending on the installation environment, operating settings, sample placement, and chamber loading conditions.
