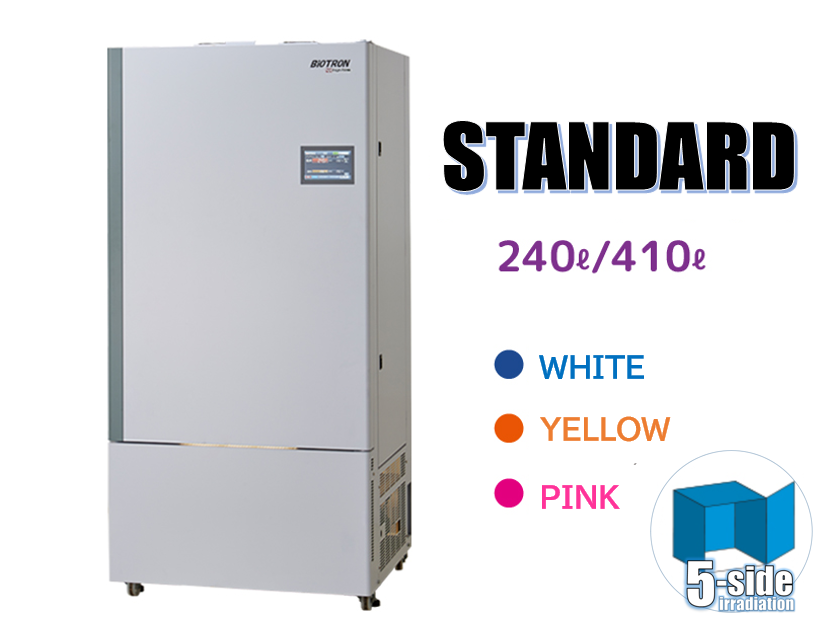

Plant Growth Chamber

The Plant Growth Chamber is an energy-efficient, closed-type environmental chamber designed for precise plant research and controlled growth studies. Equipped with dimmable LED lighting, it offers a choice of sun-like white LEDs (SUNRAY LIGHT) or plant growth LEDs (PLANTFLEC) to suit different research applications. Researchers can easily simulate short-day and long-day conditions with flexible environmental controls.

Available in 240L and 410L capacities, the chamber features advanced temperature and humidity regulation with either constant/day-night operation or programmable control, ensuring stable environmental conditions while minimizing energy consumption. It is an ideal solution for agricultural research, plant physiology, biotechnology, and life science laboratories.

Know More

Applications

Plant cell and tissue culture
Seed germination, acclimation, and growth studies
Environmental simulation and resistance testing
Rice, Arabidopsis, and other plant growth experiments
Insect breeding and biological research
Constant temperature and humidity storage tests
Agricultural, botanical, and life science research

Optional Accessories

Water tank stand (for LPH models) – 300 × 400 × 900 mm
Evaporator for drained water (for LPH models)

Technical Specifications

240 ℓ series

Specification	LH-241PFT-S	LPH-241PFT-S	LH-241PFT-SP	LPH-241PFT-SP
Available LED Types	White LED (LH-241PFS) / Yellow LED (LH-241PFD) / Pink LED (LH-241PFP)
Outer Dimensions (W × D × H)	760 × 726 × 1,767 mm
Inner Dimensions (W × D × H)	512 × 485 × 980 mm

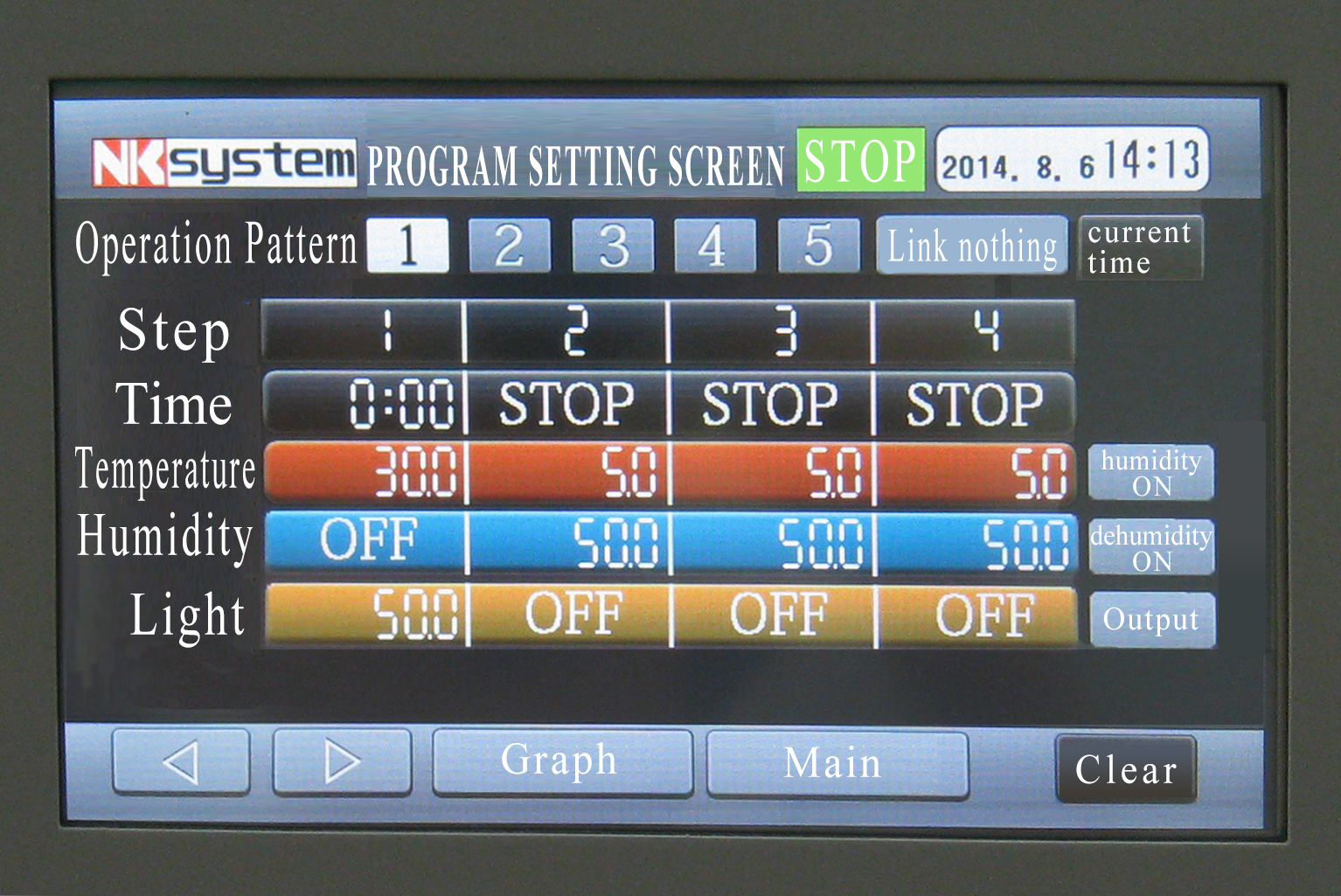

Control System	Constant operation and Day/Night switching operation		Real-time program control (24-hour) / Accumulated time control (up to 999 hours 59 minutes per step) 24 steps / 5 patterns with pattern link function
Repeat	—		1–99 times or Unlimited
Control Method	Three-position control method Refrigerator & Humidifier: ON/OFF Control Heater: Proportional Control
Temperature Range	+5°C to 50°C (15°C when all lights are ON)
Humidity Range	—	50–80% RH ±10% RH (15–45°C)	—	50–80% RH ±10% RH (15–45°C)
Illuminance	White & Yellow: 0–20,000 lx Pink: 0–12,000 lx Continuously dimmable from 20% to 100% (or 0% when lights are OFF)

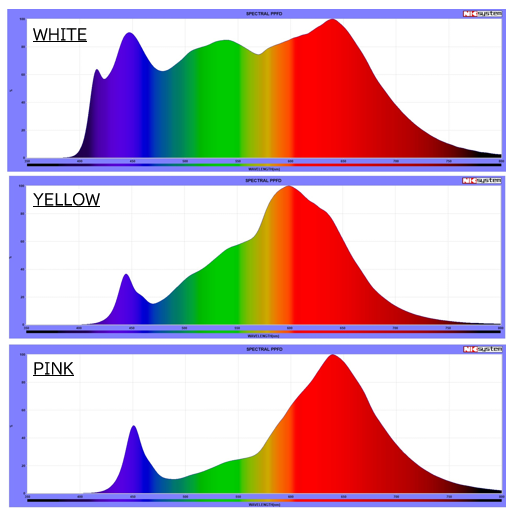

Photon Flux Density	White: 0–330 μmol/m²/s Yellow: 0–280 μmol/m²/s Pink: 0–260 μmol/m²/s
Light Source	White: Straight Tube Sun-like LED (SUNRAY LIGHT) Yellow & Pink: Straight Tube Plant Growth LED (PLANTFLEC)
Number of Lamps	Left, Right & Rear: 4 Lamps (40W) × 3 sides Ceiling & Door: 4 Lamps (20W) × 2 sides
Refrigerator	300 W
Heater	400 W	500 W	400 W	500 W
Humidifier	—	80 W	—	80 W
Shelves	5 Adjustable Shelves
Maximum Operating Current	White: 9A Yellow & Pink: 8A	White: 13A Yellow & Pink: 12.5A	White: 9A Yellow & Pink: 8A	White: 13A Yellow & Pink: 12.5A
Power Requirement	Single Phase 100V, 50/60Hz, 15A
Weight	Approx. 225 kg	Approx. 235 kg	Approx. 225 kg	Approx. 235 kg

410L Series

Specification	LH-411PFT-S	LPH-411PFT-S	LH-411PFT-SP	LPH-411PFT-SP
Available LED Types	White LED (LH-411PFS) / Yellow LED (LH-411PFD) / Pink LED (LH-411PFP)
Outer Dimensions (W × D × H)	880 × 806 × 1,875 mm
Inner Dimensions (W × D × H)	670 × 565 × 1,100 mm
Control System	Changeover between constant operation and day/night switching operation		Real-time based control (24 hours) / Cumulative hours-based control (Up to 999 hours and 59 minutes per step) 24 steps / 5 patterns with a pattern link function
Repeat	—		1–99 times or Unlimited
Control Method	Three-position control method: Refrigerator & Humidifier – ON/OFF Control, Heater – Proportional Control
Temperature Range	+5°C to +50°C (+15°C when all lights are ON)
Humidity Range	—	50–90% RH ±10% RH (15–45°C)	—	50–90% RH ±10% RH (15–45°C)
Illuminance	White & Yellow: 0–20,000 lx Pink: 0–12,000 lx Continuously dimmable from 20% to 100% (or 0% when lights are OFF)
Photon Flux Density	White: 0–330 μmol/m²/s Yellow: 0–280 μmol/m²/s Pink: 0–260 μmol/m²/s
Light Source	White: Straight Tube Sun-like LED (SUNRAY LIGHT) Yellow & Pink: Straight Tube LED Lamp (PLANTFLEC) for Plant Growth
Number of Lamps	Left, Right, Rear & Door: 4 Lamps (40W) × 4 Sides Ceiling: 6 Lamps (20W) × 1 Side
Refrigerator	300 W
Heater	500 W
Humidifier	—	80 W	—	80 W
Shelves	6 Adjustable Shelves
Maximum Operating Current	White: 11A Yellow & Pink: 10A	White: 14.5A Yellow & Pink: 13.5A	White: 11A Yellow & Pink: 10A	White: 14.5A Yellow & Pink: 13.5A
Power Requirement	Single Phase 100V, 50/60Hz, 15A
Weight	Approx. 275 kg	Approx. 285 kg	Approx. 275 kg	Approx. 285 kg

Notes

All models support continuous LED dimming for precise light intensity control.
Temperature sensor: Platinum resistance temperature sensor. Humidity sensor: Polymer film capacitive sensor. Humidifier: Ultrasonic humidifier.
The internal power outlet of LPH-411PFST-S and LPH-411PFST-SP supports equipment up to 0.5A. All other models support up to 1A.
These chambers are designed to operate at an ambient temperature of 15°C to 30°C. Performance may vary depending on operating conditions.
Use only purified water, such as distilled water or reverse osmosis (RO) water.
Specified performance may vary depending on the selected temperature and humidity settings.
Depending on the sample type, a drainage installation may be required.
When the lighting system is in use, the temperature should be set to 15°C or higher.
Maintain a minimum clearance of 30 cm on both sides and at the rear of the chamber to ensure proper ventilation and cooling.
The specified temperature and humidity control accuracy applies when the chamber lights are turned off.
For long-term operation under high temperature and high humidity conditions, please contact us for confirmation.
