Pan Tilt Pipe Inspection
Camera
Advanced Pan Tilt Pipe Inspection Camera
The Pan Tilt Rotating Camera is designed for comprehensive inspection of underground pipelines, sewer systems, drainage networks, and industrial piping. Equipped with a 33mm stainless-steel 360° pan / 180° tilt camera head, sapphire lens optics, and a built-in 512Hz transmission signal, it delivers crisp 2MP high-definition footage, enabling operators to detect cracks, corrosion, blockages, leaks, and structural defects with exceptional accuracy.
Its rugged, waterproof housing and precise pan-tilt maneuverability make it ideal for municipal sewer inspection, pipeline maintenance, utility surveys, and industrial facility diagnostics. The camera helps improve inspection thoroughness, minimize manual excavation, and support faster, more informed maintenance decisions.
Technical Advantages
- The 33mm rotating camera provides flexible viewing and helps inspect difficult-to-reach areas.

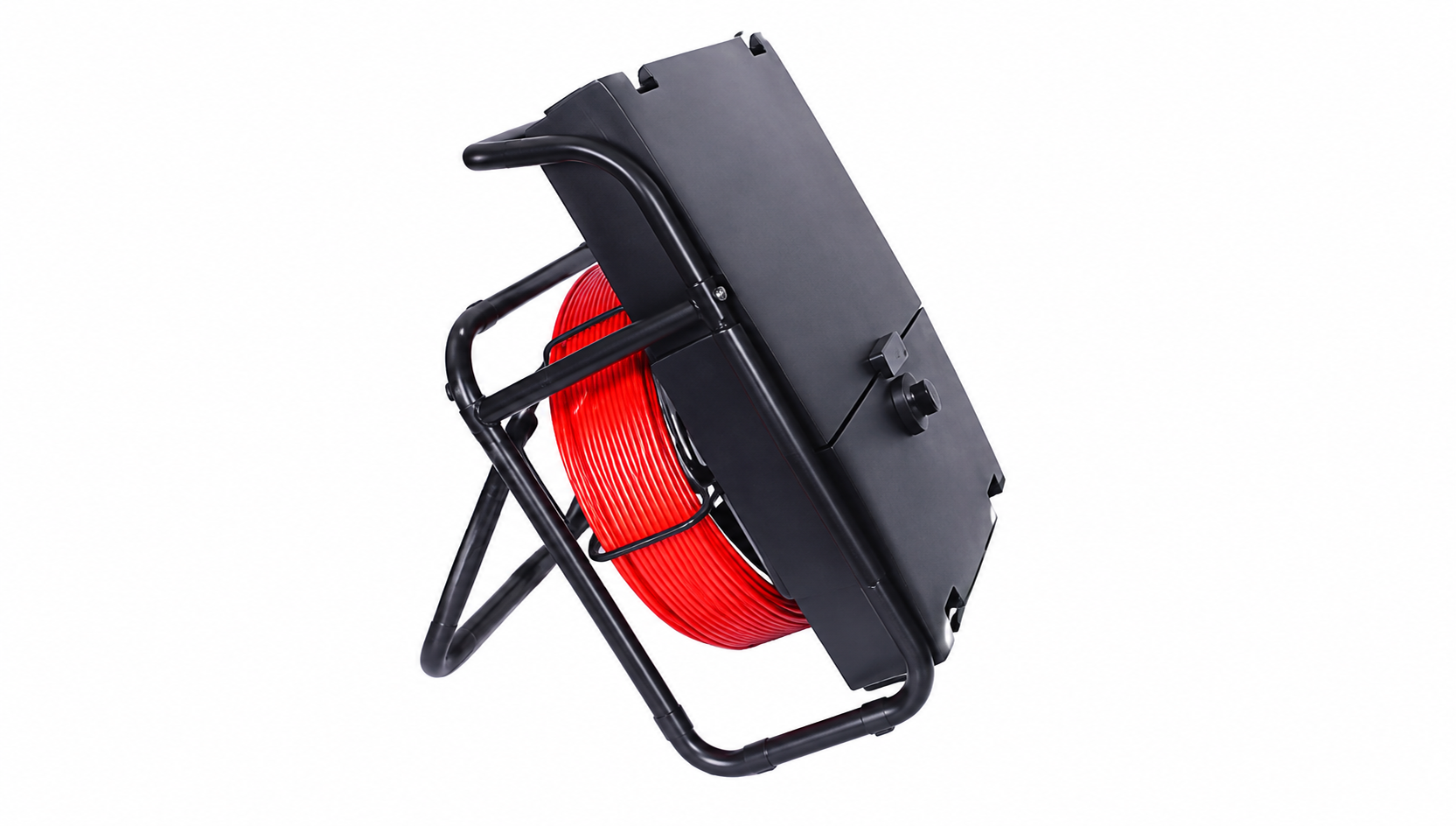

- The portable cable reel makes deployment, handling, and storage of the inspection cable more convenient.
- The centering guide skid helps keep the camera properly positioned inside the pipeline for clearer and more consistent inspection.
- Combines the AHD DVR control unit, portable cable reel, rotating camera, and centering guide for efficient inspection.
Technical Specifications
System Specifications
| Specification | Details |
|---|---|
| Camera Size | Ø33 × 72 mm |
| Sensor | 2MP AHD CMOS |
| Lens | Sapphire, 120° FOV |
| Pan / Tilt | 360° Pan · 180° Tilt |
| Illumination | 4× LED, Adjustable |
| Waterproof | IP68, Camera Head |
| Display | 8" IPS, 1280 × 720 |
| Recording | 720P, MP4 / HD DVR |
| Storage | 32GB, USB External |
| Cable Diameter | Ø7.0 mm Fiberglass |
| Cable Length | 20–40m, Selectable |
| Battery | 6800mAh Li-ion · 5h |
| Meter Counter | <1% Error Margin |
| Shell | Stainless Steel Body |
